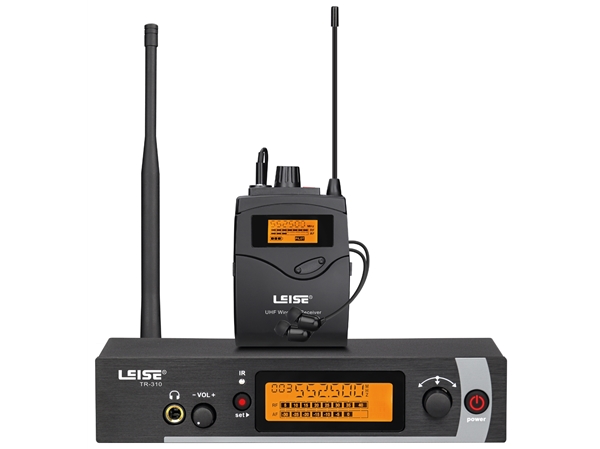

Name：TR-310 Wireless Mono In-Ear Monitoring System
Details
Specification
Transmitter
Frequency range: 550-955 Mhz
Audio input: Max input +18dBu
Power supply 12-15 V DC
Consumption 15V 300 mA
Transmitted power 10mW~100mW (optional)
Receiver
Frequency range 550-950 MHz
eceiving sensitivity-95dBm
The battery 1.5 V * 2
Frequency response 20-20,000 Hz
Audio output 10dB distortion :(1kHz@<1% distortion)
Consumption 4.2V 250 mA
System
Distortion < 0.1%
Signal-to-noise ratio 100dB
Frequency range 550-950 MHZBandwidth 2MHz
Dynamic range 100dB
Audio sampling 24 bit/192 kHz
Transmission system Digital modulation
Audio response time <5 ms Audio coding Digital coding
Frequency response 20-20,000 Hz
Working distance 50 meters
